HLC- Products

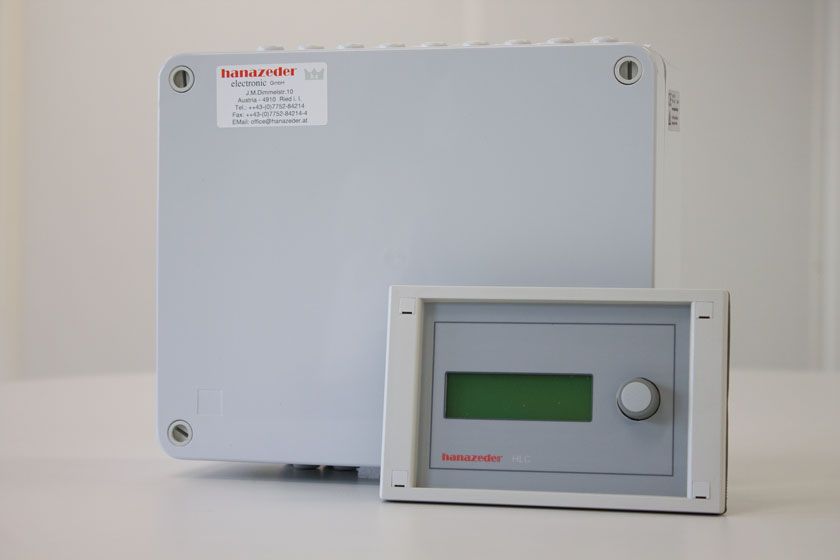

A programmable home automation controller

digital Outputs	analog Outputs	universal Inputs	digital Inputs
10	4	16	4

Bus connection for expansion via CAN bus

Network Connection

Integrated data logger

10 programmable function keys and display (not included in version for cabinet installation)

Includes software for programming and visualization

For much larger projects, the controller is also available in a version with more program memory. Please contact us if interested.

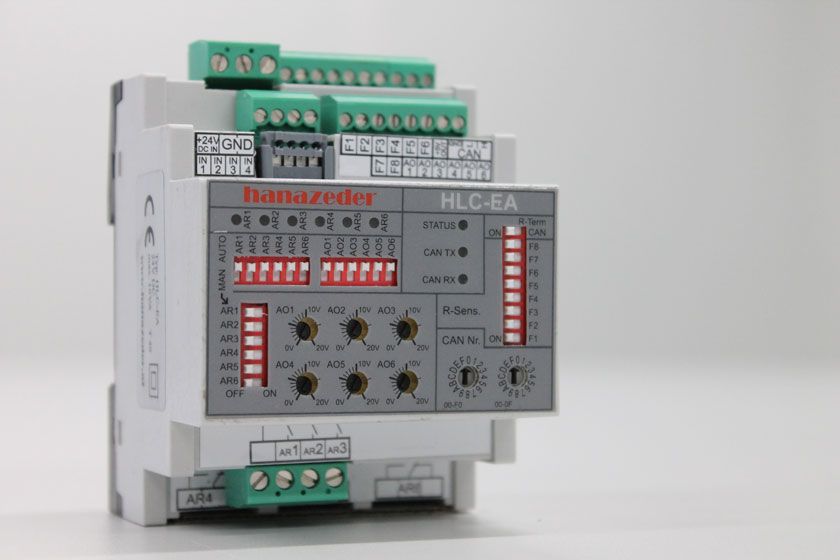

Input and output expansion for HLC control

digital Outputs	analog Outputs	universal Inputs	digital Inputs
6	6	8	4

24V DC power supply

Suitable housing for DIN rail mounting

Connection to HLC control via CAN bus

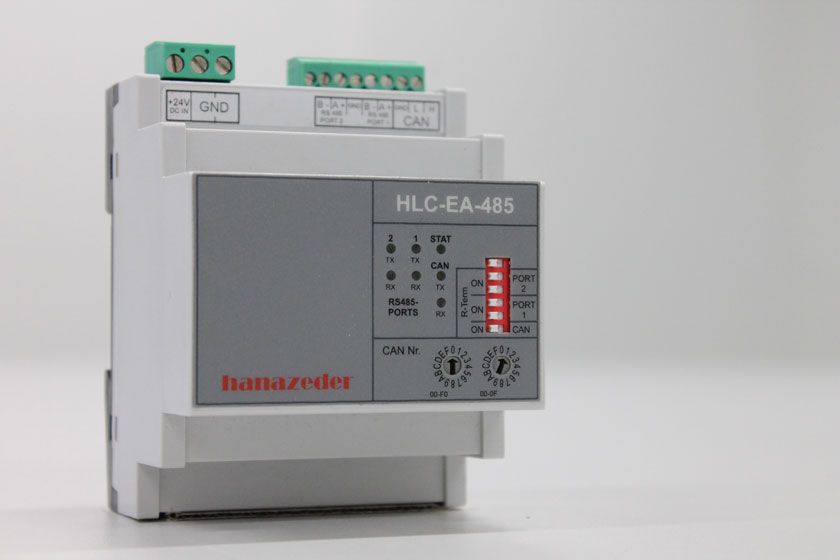

MOD-Bus extension module for HLC control.

At the 2 MOD bus interfaces (RS485 RTU) up to 32 devices can be connected.

24V DC power supply

Connection to HLC control via CAN bus

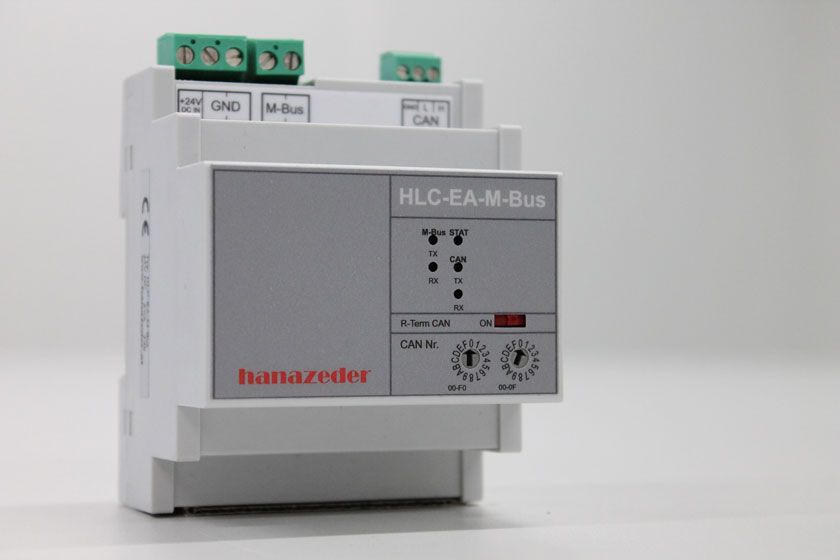

M-Bus extension module for HLC control.

A maximum of 10 M-Bus devices can be connected to the M-Bus interface of the expansion module.

24V DC supply voltage

Connection to HLC control via CAN bus

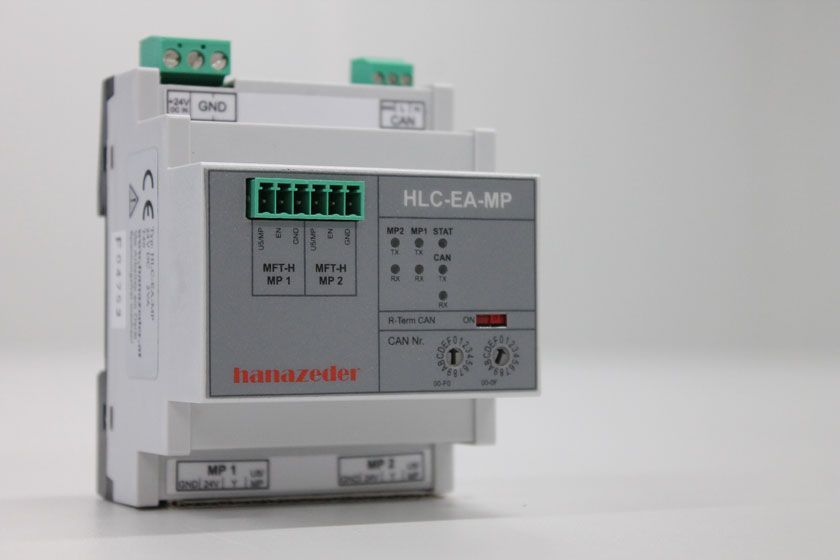

MP-Bus extension for HLC controller. With this Belimo MP-Bus extension, devices such as actuators and dampers are connected to the HLC.

24V DC power supply

Connection to HLC control via CAN bus

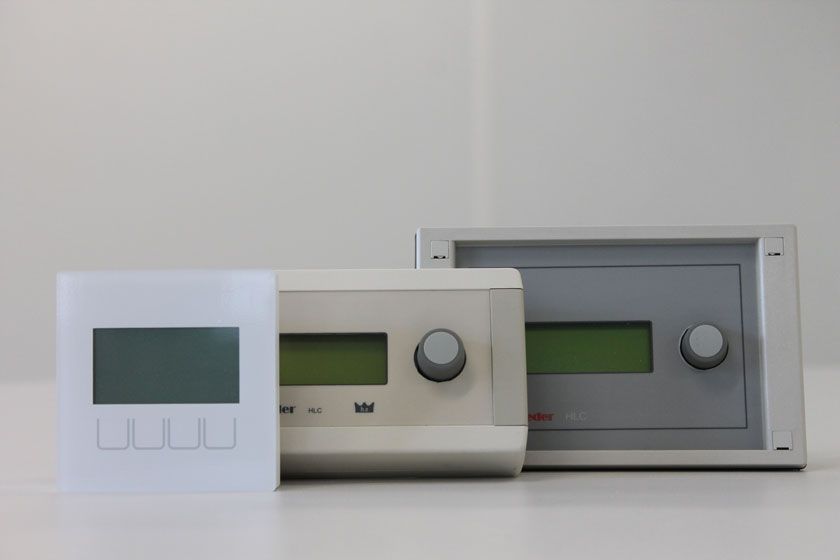

Room control unit for the remote control of the HLC. With multifunction radio control.

Especially suitable for installation in switch cabinets.

24V DC power supply

Connection to HLC control via internal RS485 bus

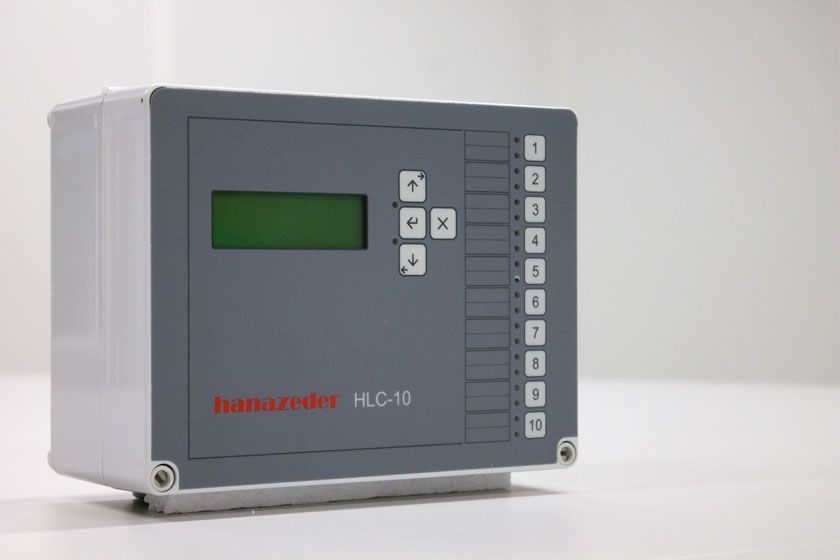

A programmable home automation controller

digital Outputs	analog Outputs	universal Inputs	digital Inputs
20	3	26	4

Programming with HLC ProgrammerConnection to PC via serial port 230V AC power supply

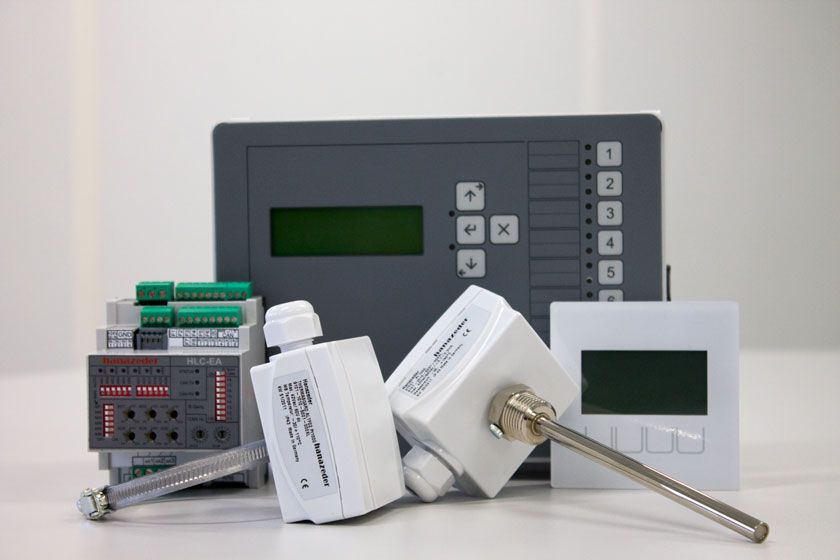

Of course you can also get various accessories for engineering projects directly with us...

If you have any questions concerning accessories please contact us: support@hanazeder.at
